POWER SUPPLIES and AC SOURCES,  SALES and REPAIR

Agilent, Artesyn, Aztec, HP, Elgar, EMS, TDK Lambda, Power One, Power Ten,

Sanden, Sangen, Sorensen, Tektronix, Voltex, Xantrex


Phone: 650-261-1711            Back To EquipTek Labs Home Page                            E-MAIL US



MAKE

MODEL

AC POWER SOURCES

Price US$

California Instruments

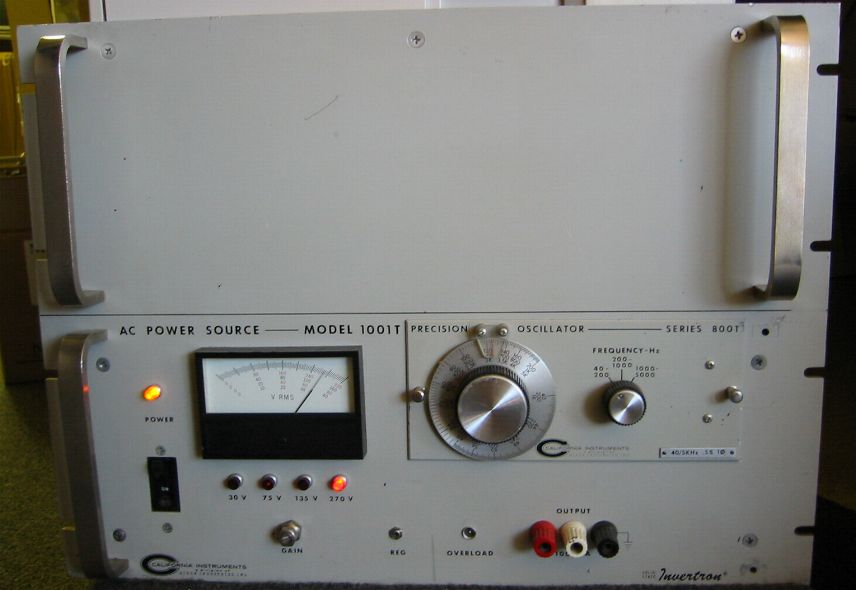

 1001T

AC power source, 1000Wt,  0-270VAC, 45Hz-5kHz , 0.1Hz Resolution,  850T oscillator  Pic

1495

Elgar

1751SX-14

AC power source with  9012 variable frequency plug-in and GPIB interface

2500

Elgar

9012

Variable frequency plug-in for Elgar 1751SX AC power source

995

Kikusui

PCR1000L

1kVA AC/DC power source. Up to 300VAC or 424VDC. Frequency: 1Hz-900Hz with 0.1Hz

5850





ELECTRONIC LOADS

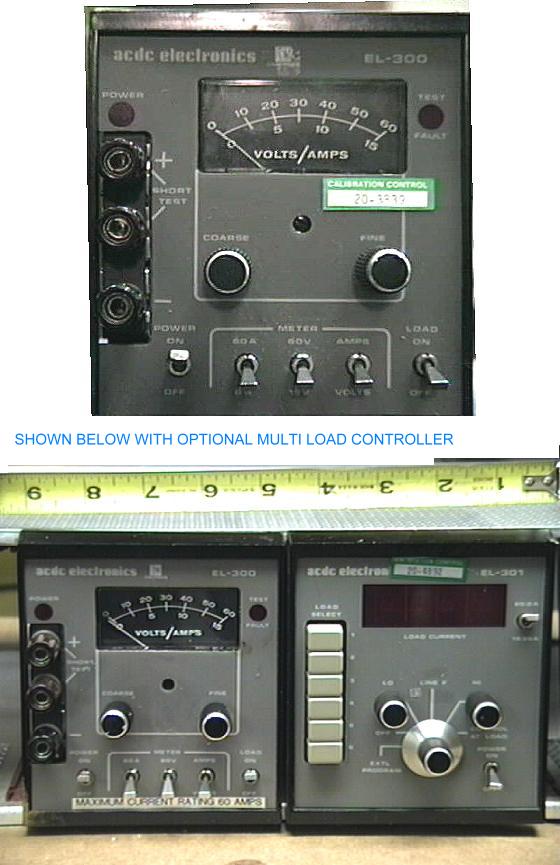

AC/DC

EL300

Electronic load. 300Wt max. Hi/Low range, small size Pic

390

Kikusui

PLZ300W

Electronic load. 300Wt max. Static or Dynamic mode. Constant current or resistance. Pic

590

Transistor Devices

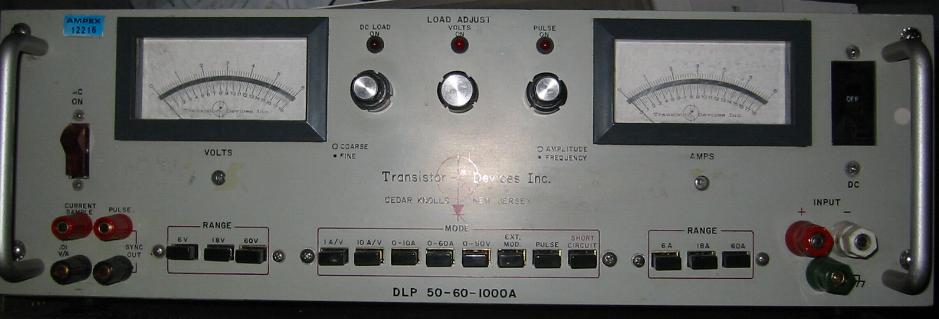

DLP50-60-1000A

1000Wt, 60A, Static or dynamic mode. Three current ranges: 6, 18, 60A. Pic

650

Transistor Devices

DLP50-20-100

Electronic load with LCD displays. Hi/Lo range, Constant current or constant voltage mode. Available as a bank of 4 units.

250





SINGLE OUTPUT DC LAB POWER SUPPLIES  listed by output voltage rating



Lambda

ZUP6-33

0-6VDC, 0-33A, Programmable power supply. RS-232/485 interface. Compact high efficiency design. Pic

495

Xantrex

XHR7.5-130

0-7.5V, 0-130A. Desktop size. ii

895

EMI

EMS7.5-75-1-D

0-7.5V, 0-75A, Constant current or voltage mode. Only 1.5" high. Digital high resolution displays.

595

HP

6281A

0-7.5V, 0-5A, Constant current or voltage mode. Add PC interface for $125 (GPIB)

195

Agilent

6611C

0-8V, 0-5A Programmable power supply.5mV programmable accuracy. 0.5mV Rms ripple

295

EMS

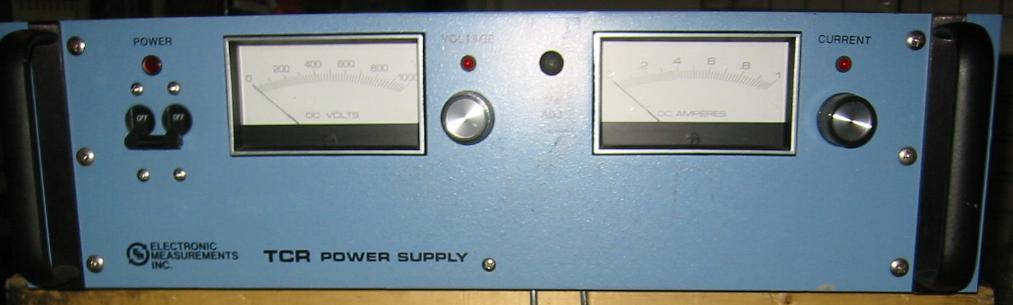

TCR7.5S300

0-7.5V, 0-300A, Constant current or voltage mode. FREE GPIB controller! For use on 190-250VAC lines

1650

Kikusui

PAD8-5L

0-8V, 0-5A, Constant current or voltage mode. Small size. Linear design

150

Agilent

66101A

0-8V, 0-16A, programmable plug-in for the Agilent 66000A mainframe

450

HP

6282A

0-10V, 0-10A Const voltage or Current mode. Add PC interface for $125 (GPIB)

295

EMI

EMS10-60-1-D

0-10V, 0-60A, Constant current or voltage mode. Only 1.5" high.  Digital high resolution displays.

495

HP

E3610A

0-15V @ 0-2A or 0-8V @ 0-3AConstant current or voltage mode.

195

Kepco

ATE15-3

0-15V, 0-3A Constant current or voltage mode. Remote programming. Fast response Add GPIB interface for $95.

195

Sorensen

XTS15-4

0-15V, 0-4A Constant current or voltage mode. With opt GPIB-M

395

Xantrex

XTS15-4

0-15V, 0-4A Constant current or voltage mode. With opt GPIB-M

395

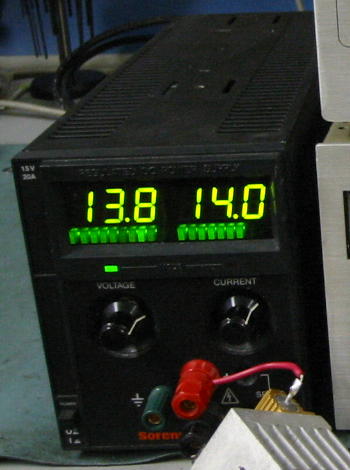

Sorensen

HPD15-20S

0-15V, 0-20A Constant current or voltage mode. Digital display with analog bar graph. pic

350

Xantrex

HPD15-20S

0-15V, 0-20A Constant current or voltage mode. Digital display with analog bar graph. pic

350

Lambda

LLS4018

0-18V, 0-2A, Constant current or voltage mode, digital controls & displays.

295

Kikusui

PMC18-5A

0-18V, 0-5A, Constant current or voltage mode, digital displays, remote sensing, ON/OFF sw.

175

Lambda

LLS6018

0-18V, 0-9A, Constant current or voltage mode, digital controls & displays. Small size Simulate solar panel output for inverter testing

395

HP

6111A

0-20V, 0-1A. 5 decades of resolution permit setting output voltage with 1mV  accuracy

350

Agilent

E3615A

0-20V, 0-3A.  Digital displays. IN STOCK

245

HP

6264B

0-20 VDC, 0-20A, Voltage Regulation 0.01%. Add PC interface for $125 (GPIB) Simulate 220Wt solar panel output for inverter testing. (GPIB interface with HP59501A)

450

HP

6284A

0-20V, 0-3A Constant current or voltage mode. Add PC interface for $125 (GPIB)

250

HP

6552A

0-20V, 0-25A New surplus. Free rack mount kit. Simulate 500Wt solar panel output for inverter testing. Free GPIB interface

795

HP

6033A

0-20V, 0-30A. Auto ranging, 240Wt max. GPIB interface.

950

HP

6261B

0-20V, 0-50A, Linear, Const. voltage or current. 115VAC (opt 26), 10 turn V/A pots (opt 9). GPIB interface with HP59501A

690

Amrel

SPS20-60-000

0-20V, 0-60A. Digital displays, only 1.5" high, 19" rack ready. Optional GPIB is available pic

450

Amrel

SPS20-60-002

0-20V, 0-60A. Digital displays, only 1.5" high, 19" rack ready. Optional GPIB interface. pic

650

Lambda

LGSF24

24V, 41Amp, LED readout for V & A. Model # LGS-F-24-0V-R

275

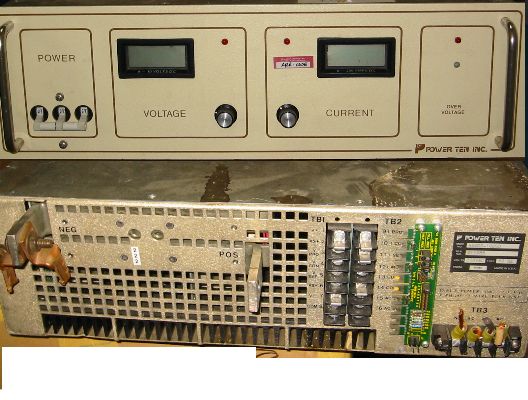

Power Ten

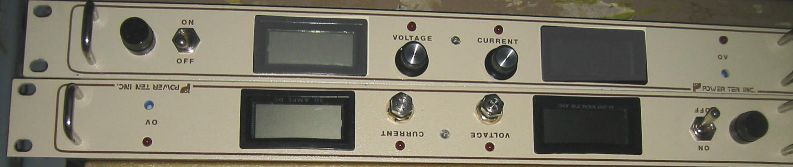

4600D-20125

0-20V, 0-125A, LCD displays, Const current or voltage mode. Line requirements: 190-253VAC sinlge or 3 phase

950

HP

6215A

0-25V, 0-400 mA. Const voltage or const current. 1mV ripple, size: 5.25x3.25x8"  Fine Volt/Amp controls.  Pic

65

HP

6216A

0-25V, 0-400 mA. Const. voltage or const. current. 1mV ripple, size: 5.25x3.25x8" Fine Volt/Amp  adjPic

65

Fluke

PM2811

0-30V, 0-10A, 60Wt max., GPIB programmable. IN STOCK.

350

Sorensen

DCS33-33E

0-33V, 0-33A, opt M9; GPIB/RS232. IN STOCK.

850

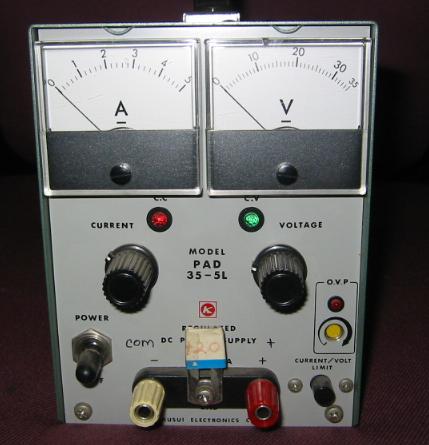

Kikusui

PAD35-5

0-35V, 0-5A Compact size, Remote control. Master/slave mode with tracking. Pic  add GPIB for $125

250

Agilent

N6774B

DC Power Module 0-35V, 0-8.5A Power module for N6700B 006

795

Lambda

ZUP36-6

0-36V, 0-6A, Programmable lab power supply. RS-232/RS485. Very small footprint.

450

HP

6334B

0-36V, 0-10A, Constant current or   voltage, Only 3" high. Volt and amp meter

350

HP

6104A

0-40V @1A or 2A from 0 to 20V. Precision power supply. Line regulation: 0.0005%+40uV, Load regulation: 0.0005%+100uV, Drift: 0.005%+50uV  pic

150

Kenwood

PD35-20D

0-35V, 0-20A Digital displays, constant current or voltage modes. Linear design with extremely quiet output. Pic

650

Lambda

ZUP36-24

0-36V, 0-24A, Programmable lab power supply. RS-232/RS485

850

Lambda

LP-412A-FM

0-40V, 0-1A lab power supply, constant current or voltage mode, Separate V and A meters. Low noise and low ripple.

75

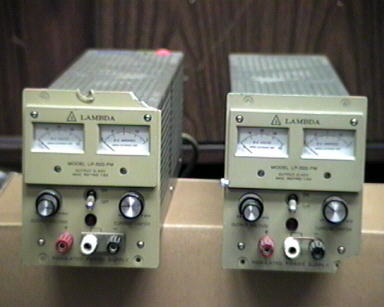

Lambda

LP-522FM

0-40V, 0-2A lab power supply, constant current or constant voltage modes, Analog meters for V and A. Small size. Low noise and low ripple. Cosmetically imperfect.  Pic

120

Lambda

LP-532FM

0-40V, 0-3A lab power supply, constant current or constant voltage modes, analog meters for V and A. Low noise and low ripple. Line regulation: 0.01%

180

Lambda

LQ-532

0-40V, 0-5A. Digital display. Constant current or constant voltage mode. Remote control capability

295

HP

6200B

0-40 V, 0-0.75A, or 0-20V at 0-1.5A.  Constant voltage or current. Regulation: 0.01%.

175

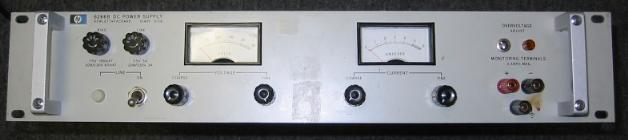

HP

6266B

0-40 V, 0-5A, Constant voltage or current. Regulation: 0.01%. Add PC interface for $125 (GPIB) Pic

285

EMS

ESS-40-25

0-40V, 0-25A, Constant voltage or current mode. LCD displays, 1.5" height. (add GPIB for $100)

790

HP

6268B

0-40V, 0-30A, Constant voltage/constant current mode. Regulation 0.01%. opt 26 & 28 avail. (GPIB interface with HP59501A)

750

Xantrex

XFR40-30

0-40V, 0-30V System power supply. 1.5" height

1095

EMI

EMS40-125-2-D

0-40V, 0-125A, Constant current or voltage mode. Digital high resolution. Requires 3 phase AC.

1150

Agilent

6684A

0-40V, 0-128A, Programmable power supply. GPIB interface. 3 phase AC required

2200

Prism

PPS 50S-1

0-50V, 0-1A, Programmable power supply. GPIB interface. High resolutions (4 digit) Pic

175

Sorensen

DCS50-40M16

0-50V, 0-40A 1 or 3 phase  AC input, current monitor output.

     490

Power Design

6050A

0-60V at 500 mA or 0-6V at 6A Dual range

185

Lambda

LQ-523

0-60 V, 0-900 mA, digital V/A display, CV/CC mode, small size. Remote analog programming. Pic

120

Sorensen

XTS60-1

0-60V, 0-1A Constant current or voltage mode. Digital display with analog bargraph

350

Xantrex

XTS60-1

0-60V, 0-1A Constant current or voltage mode. Digital display with analog bargraph

350

Sorensen

QRD60-1.5

0-60V, 0-1.5A Constant current or voltage mode.

150

HP

6012A

0-60V, 0-50A, 1000Wt. 90day warranty.

995

HP

6206B

0-60V @ 0.5A or 0-30 @ 1A dual range. 0.01% regulation, 200uV rms ripple

170

Power Design

6050A

0-60V @ 0.5A or 0-6V @ 6A dual range.

195

Sorensen

XTS60-1

0-60V, 0-1A Dual output. Constant current or voltage mode. Digital display with analog bar graph. Pic

295

Xantrex

XTS60-1

0-60V, 0-1A  Dual output. Constant current or voltage mode. Digital display with analog bar graph. Pic

295

HP

6294A

0-60V, 0-1A Constant current or constant voltage mode. 0.01% regulation. Linear.

175

HP

6296A

0-60V, 0-3A Constant current or constant voltage mode. 0.01% regulation. Linear.

350

Lambda

LQ-533

0-60V, 0-3.3A. Digital display. Constant current or constant voltage mode. 0.01% regulation.

350

Agilent

6544A

0-60V, 0-3.5A IN STOCK!

850

HP

6034L

0-60V, 0-10A, 200Watt max., Computer programmable (GPIB)  pic

650

Power Ten

3300D-6010

0-60V, 0-10A, LCD displays, Height:  1.5" Const current or voltage mode. pic

695

HP

6554A

0-60V, 0-9A, 540Wt, Programmable accuracy: 26mV/8mA. List price $3,724. IN STOCK

975

HP

6274B

0-60V, 0-15A, Const voltage or Current mode.  Analog remote programming. Latest serial number

595

Agilent

6032A

0-60V, 0-50A, 1000Wt autoranging power supply. Programmable (GPIB) iii

1450

Kepco

JQE75-8M

0 to 75V, 0 to 8A, Constant voltage or current mode. High resolution V/I control. List price $2095 pic

595

HP

6116A

0-100V, 0.2A Precision voltage setting with 0.1%+1mV accy, 200uV resolution.

290

Kikusui

PAB110-0.6

0-110V, 0-0.6A.  CV or CC mode. LCD readouts. Analog programming. 00-0010

350

Xantrex

XFR100-12

0-100V, 0-12V System power supply. 1.5" height

1095

Agilent

E3612A

0-120V, 500mA below 60V, 250mA above 60V. Constant voltage or current. 3.5 digit displays.

295

Agilent

6645A

0-120V, 0-1.5A. 3.5 digit setting accuracy. GPIB interface. Digital and analog front panel controls

795

HP

6443B

0-120V, 0-2.5A. Constant voltage or current. Fine adjustment controls.

395

Agilent

6675A

0-120V, 0-18A, Programmable power supply. iii

1250

Sorensen

DHP100-50M9D

0-100V, 0-50A.option M9D (GPIB interface). Line requirements: 200-240VAC, 3 Phase

2500

Sorensen

DHP130-115

0-130V, 0-115A. Line requirements: 200-240VAC, 3 Phase

1950

Sorensen

DHP130-153

0-130V, 0-153A. Option M9 (GPIB) Line requirements: 200-240VAC, 3 Phase. 006

2450

Power Ten

4600D-15033

0-150V, 0-33A, LCD displays, Const current or voltage mode. Line requirements: 190-253VAC single or 3 phase

1350

Sorensen

DCR150-3B

0-150V, 0-3A, Constant current or voltage mode.

495

Sorensen

DCR150-18B

0-150V, 0-18A, Constant current or voltage mode. Line voltage: 115VAC

1950

Sorensen

SGA160/31C

0-160V, 0-31A options 1AAA. GPIB and  RS-232 interface

2750

Sorensen

SGA160/94C

0-160V, 0-94A options 1AAA. GPIB and RS-232 interface   ii

3500

Sorensen

PRO160-62T1

0-160V, 0-62A. Line requirements: 208VAC, 3 Phase. 006

1950

Kikusui

PAD160-7L

0-160V, 0-7A.  Constant duty power supply. CV or CC mode. Digital amp meter

1295

Kepco

ABC-200

0-200V, 0-150mA. 6.3VAC, Grid control output. CV or CC mode

175

Biorad

200/2.0

0-200V, 0-2A. 200Wt max. CV or CC mode. Programmable On/Off time. Pic

375

HP

6030A

0-200V, 0-17A Constant voltage or current. GPIB interface.

1950

Kikusui

PAB250-0.25

0-250V, 0-250mA.  CV or CC mode. LCD readout. Analog signal  remote programming

350

Sorensen

XT250-0.25

0-250V, 0-250mA. Constant voltage or current mode. 3 1/2 digit digital meters

395

Xantrex

XTS250-0.25

0-250V, 0-250mA. Constant voltage or current mode. 3 1/2 digit digital meters

395

Kepco

HB4A

0-325V, in 5 ranges. 400mA. Constant voltage mode only.

195

Kikusui

PAB350-0.1

0-350V, 0-100mA.  CV or CC mode. LCD readout. Analog signal  remote programming

275

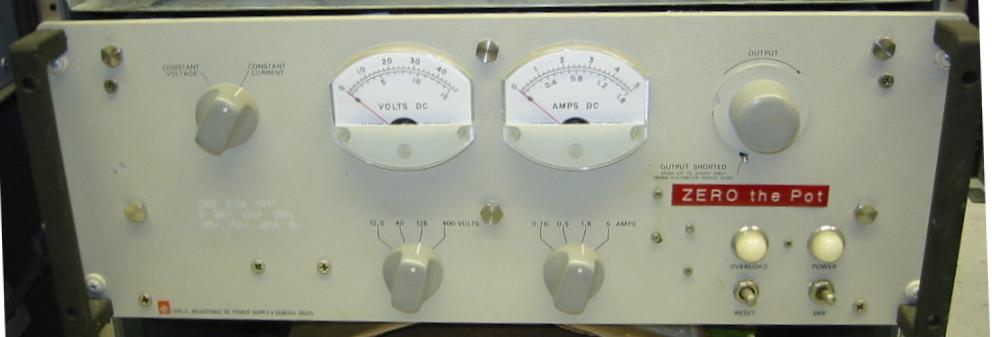

GR

1265A

0 to 400V, 0 to 5A (200Wt max) Const. voltage or constant current mode. Line regulation 0.2%. pic

490

Bertan

230-01R

0-1000V, 15mA, Reversible polarity, 3.5 digit LED. Analog remote control

  750

Agilent

G3170-80018

Bipolar HED power supply for the Agilent 5975 GC systems. Applied Kilovolts p/n HF007PZZ425

call

Agilent

G1969-80108

Detector power supply for TOF III.  Applied Kilovolts p/n HP010RZZ366

call

Agilent

G1946-80259A

Detector power supply for 61XX series system.

call

ISCO

494

0-2000V, 0-200mA ( 100mA @ 2000V )Constant voltage, current or power mode Electrophoresis power supply Pic

290

Power Design

HV-1547

0-3kV, 40mA. Reversible polarity output.  1V setting resolution.

750

Bertan

205-10P

10kV, 2.5mA. Positive output.  1V setting resolution. Analog remote control

1250

Bertan

205-10N

10kV, 2.5mA. Negative output.  1V setting resolution. Analog remote control

950

Bertan

205-20R

20kV, 1mA,  Reversable polarity, 1V setting resolution. Analog remote control

1195

Bertan

105-30R

30kV, 33mA,  Constant current or voltage mode, digital display, high resolution V/I controls, remote analog programming.

call





DUAL OUTPUT LAB POWER SUPPLIES



Agilent

E3648A

0-20V, 0-8V Dual output, 100Wt programmable power supply. GPIB & RS-232 interface. viii

695

HP

6621A

Two outputs 0-20VDC@ 0-2A or 0-7V @ 0-10A, GPIB interface

650

HP

6227B

0-25V @ 0-2A. Dual output, CV/CC Tracking mode. Low noise, single output winding produces continuous voltage up to 50V!

275

HP

6234A

0-25V @ 0.2A dual or 0-50V single @ 0.2A. Small size: 3.64"x6.17"x8.25". IN STOCK

195

HP

6253A

0-20 @ 0-3A each, 0.01% regulation, 200uV rms ripple. Constant voltage or current mode.

295

HP

6255A

0-40 @ 0-1.5A ea. 0.01% regulation, 200uV rms ripple. Const. voltage or current modes.

275

Power Design

TW5005W

Dual 0-50V, 0-0.5A output with tracking function. Single range with no output voltage jumps

175

Tektronix

PS501-1

Precision power supply. 0-20 V with 10mV resolution setting 0-400mA, 5VDC @ 1A fixed output. For TEK TM series chassies

125

Topward

TPS-3000

Dual 0-30V, 0-2A output with tracking function. Four separate meters for simultaneous monitoring of voltage and current

275

Xantrex

6060D

0-60 @ 0-1A dual output. Same as two Xantrex XTS60-1 mounted in one chassis. Pic

295





TRIPPLE & QUAD OUTPUT LAB POWER SUPPLIES



Agilent

E3004-61030

Power supply for Agilent 94000 analog IC tester.

call

Agilent

0950-1972

Power supply for HP 83732A generator. FLAT RATE REPAIR

call

Agilent

0950-3484

Power supply for Agilent E444XA series spectrum analyzer. FLAT RATE REPAIR

call

Agilent

0950-3384

Power supply for Agilent E865XA series VNA's and other models. FLAT RATE REPAIR

call

Agilent

0950-4447

Power supply for Agilent E444XA series spectrum analyzer. FLAT RATE REPAIR

call

Agilent

0950-4599

Power supply for Agilent E8300 series analyzers. FLAT RATE REPAIR

call

Agilent

0950-5037

Power supply for Agilent E4438C, E4428C and other signal generators. REPAIR

call

Agilent

0950-5201

Power supply for Agilent E8200 analyzers. FLAT RATE REPAIR

call

Agilent

E4401-60222

Power supply for Agilent E4400 analyzers. FLAT RATE REPAIR

call

Agilent

D8064-62601

Power supply for Agilent DSO and MSO series of oscilloscopes. FLAT RATE REPAIR

call

B&K

1602

0-400V, 200mA, 0-100V, 12.6VAC CT. Current limiting control and AC output circuit breaker

390

B&K

1660

2x 0-30V @ 2A ea. and 4-6.5V @ 5A. Tracking mode. Series/Parallel LED displays. Pic

195

HP

6237B

0-18V @ 1A and two 0-20V outputs at 0.5A each. Tracking mode.  IN STOCK ii

350

HP

6624A

Quad output 0-7V @5A, 0-20V @2A, 0-50V @ 1A. Serial number 37XX iii

750

HP

6626A

Quad output 0-7V or 0-50V. Precision power supply. 1.5mV/15uA programmable accuracy. ii

875

Kenwood

PWR18-1T

2 of 0-18V @ 1A and  0-6V @ 5A. Tracking mode, 3 setup memory, output on/off sw.   Pic

250

Lambda

LPT-7202FM

2 of 0-20V @ 1.5A each and  0-7V @ 5A. Separate volt and amp meters for each output.

275

Leader

LPS-152

2 of 0-25V @ 1A and  0-6V @ 5A. Tracking mode. <3mV p-pk  ripple   Pic  IN STOCK

250

Leader

LPS-152A

2 of 0-25V @ 1A and  0-6V @ 5A. Tracking mode. <3mV p-pk  ripple   Pic  IN STOCK

250

Philips

PM2813

3 of 60V @ 5A each, 60Wt maximum. Programmable, with GPIB interface. PM2813/113

495

Power Design

TP325

2 of 0-32V @ 1A each and 0-6V @ 5A Tracking mode. This P/S will not cause IC lockup on power up. Pic Specs iii

150

Power Design

TP340

2 of 0-32V @ 1A each and 0-6V @ 5A or 0-15V @ 2.5A Tracking mode. This P/S will not cause IC lockup on power up. Pic   Specs vii

150

Power Design

TP343A

2 of  0-25V @ 2A each and 0-6V @ 5A or 0-15V @ 2.5A. Tracking mode. This P/S will not cause IC lockup on power up. Pic Specs xiv

150

Sorensen

LT18-5

2 of  0-18V @ 5A each, 5V @ 3A. 18V outputs can be used in series to double the voltage to 36V, or in parallel to get 10A. Info

350

Systron Donner

TL8-3

2 of 0-32 @ 1A each, 0 to 8V @ 3A. Separate meters for each output.

295

Tektronix

PS503A

2 of 0-20V @ 0-1A max and 5V @ 1A. Tracking mode. For TEK TM500/5000 chassis only

125

Tektronix

PS280

2 of 0-30V @ 0-2A max and 5V @ 3A. Tracking, Parallel, Series modes on 30V outputs. IN STOCK.

195

Topward

4302D

2 of 0-25V @ 1A ea., 5V @ 3A.  LCD display, built in 3.5 digit voltmeter for measuring external voltage

195

Topward

6303A

2 of 0-30V @ 3A ea., 5V @ 5A.  Four analog meters, Tracking mode, CV or CC mode.

295

Topward

6306D

2 of 0-30V @ 3A ea., 5V @ 5A.  Digital meters, Tracking mode, CV or CC mode.

395

Topward

6603D-10

2 of 0-60V @ 3A ea., 5V @ 5A.  Digital meters, Tracking mode, CV or CC mode.

495





CURRENT SOURCES



HP

4141B

Programmable DC source/monitor for use in HP4062 semiconductor analysis systems

2500

HP

6177B

 DC current source 0 to 500mA, 0-50V. 500uA resolution, 5mA, 50mA, 500mA range. pic

395

HP

6177C

 DC current source 0 to 500mA, 0-50V. 500uA resolution, 5mA, 50mA, 500mA range. pic

595

HP

6186B

 0 to 100mA, 0-300V. 3 ranges; 1mA, 10mA, 100mA  pic

750





CURRENT SOURCES



HP

4141B

Programmable DC source/monitor for use in HP4062 semiconductor analysis systems

2500

HP

6177B

 DC current source 0 to 500mA, 0-50V. 500uA resolution, 5mA, 50mA, 500mA range. pic

395

HP

6177C

 DC current source 0 to 500mA, 0-50V. 500uA resolution, 5mA, 50mA, 500mA range. pic

595

HP

6186B

 0 to 100mA, 0-300V. 3 ranges; 1mA, 10mA, 100mA  pic

750

UP TO 1 year  WARRANTY and 10 DAYS MONEY BACK

NEED MORE INFO?  WE CAN E-MAIL TO YOU DATA OR  A PICTURE
Back To EquipTek Labs Home Page                E-MAIL US
Call:  650-261-1711   From 8:30 to 6 Pacific Standard Time

  04155-69013, 04145-65513, 04155-60003, FPS-1, FPS-2, 04155-69043, 04155-60043, FPST, 02160, 1731-3953, 33-3511, FPS-1, HP04155-60043, 33-4028, 5062-8229, AGILENT 0950-4599, 03108-4339,04396-61040, 04155-60013, HP 095-10097, HP 35672-67501, HP095-10097, E5250-61011, E5250-61001, E5250-61011, HP35672-67501,  0950-3700,  0950-5201,Voltex D2520
