MAKE

MODEL

 AMPLIFIERS

PRICE USD

EG&G

5101

Lock-in amplifier. 5Hz-100kHz, 1uV-500mV. Pic

650

EG&G

9503-SC

Lock-in amplifier. 2Hz-100kHz, 1uV-500mV. Digital correlation & Sinetrack modes Pic

950

ENI

310L

250kHz to 110MHz, 10Wt, 50dB RF power amplifier.

1450

Hughes

1077H11

TWT Amplifier 18-26.5 GHz,  1 Watt output. Full specs are available.  IN STOCK

call

Hughes

8000H

TWT Amplifier 3-5 GHz, 20 Watt output. Full specs are available upon request.

1950

Hughes

8000H

TWT Amplifier 10-15GHz, 40 Watt output. Full specs are available upon request.

3750

Kalmus

166AP

Pulse amplifier. 400-450MHz, 300Wt output power. Linear gain.

1950

Kepco

BOP15-20

Power amplifier Bipolar power supply. +/-15V, +/-20A. Drive 300Wt loads up to 8kHz. New in a box! Pic 001

1295

Kepco

BOP20-50MG

Power amplifier Bipolar power supply. +/-20V, +/-50A. Latest model. MSRP $7,000. IN STOCK!

3995

Mini-Circuits

ZHL-2-8-S

Amplifier 10-1000MHz, 31dB min. gain, +29dBm max.output, SMA, IP3: +38dBm.  Full specs  Pic

265

TEKTRONIX

AM502

Differential amplifier with Hi/Lo pass filter.Gain from 1 to x100,000 in 5 decades. 1MHz BW, CMRR 100dB.

395

Varian

VZM6991K3

TWT Amplifier 8 to 18 GHz, 20Wt output, 40dB gain. IN STOCK. ii

4500





ATTENUATORS



HP

8492A

Attenuator with APC-7 connector. Available values: 3,6,10,20db

  45

Agilent

8493A

12.5GHz attenuator. SMA connectors. Available values: 3,6,10,20,30dB

  45

Agilent

8494B

Programmable step attenuator, DC-18GHz, 11dB, "N" connectors (opt 002)

550

Agilent

8495B

Step attenuator DC-18GHz, 70dB, "N" connectors. With base stand

450

Agilent

8495G

Programmable step attenuator, DC-4GHz, 70dB, SMA conn.. 5VDC opt 002, 011

395

Agilent

8495H

Programmable step attenuator, DC-18GHz, 70dB, SMA connectors (opt 002)

495

Agilent

33320H

Programmable step attenuator, DC-18 GHz, 11dB, SMA conn. Sold as set of 2

395

Agilent

33321H

Programmable step attenuator, DC-18 GHz, 70dB, SMA conn. Sold as a set of 2

395

Agilent

84904K

40GHz, 11dB Step attenuator. Programmable.

995

Anritsu

41KC-3

Attenuator 3dB, 2Wt, DC-40 GHz,

   75

Anritsu

41KA-6

Attenuator 6dB, 2Wt, DC-18 GHz, NEW!                 QIV

   45

Anritsu

41KA-20

Attenuator 20dB, 2Wt, DC-18GHz, NEW!    IN STOCK

   65

Anritsu

4522K

26.5GHz, 110dB Programmable Step attenuator

1295

HP

11713A

Step Attenuator Switch driver. With 2 attenuator control cables. GPIB interface

495

HP

33320H

Programmable step attenuator, DC-18 GHz, 11dB, SMA connectors. Get HP33321H  for only $450

     550

HP

33321H

Programmable step attenuator, DC-18 GHz, 70dB, SMA connectors. Get HP33320H  for only $450

     550

Agilent

33322H

Programmable step attenuator, DC-18 GHz, 70dB, SMA connectors, 24VDC. Save $400!

     650

Agilent

33323H

Programmable step attenuator, DC-26.5 GHz, 70dB, 3.5mm connectors, 24VDC.

     850

HP

5086-7796

Programmable step attenuator, DC-26.5GHz, 70dB, 3.5mm connectors, 24VDC

     750

HP

33325-60006

Programmable step attenuator, DC-60GHz, 60dB, 2.4mm connectors, 24VDC

   1950

Narda

4779-6

6dB Attenuator, DC-18GHz, SMA (m/f), 2Wt. IN STOCK                 QVI

   39

Weinschel

3T-10

10dB Attenuator. DC-12.4GHz, SMA (f/m). NEW! IN STOCK              QIII

   55

Weinschel

3T-20

20dB Attenuator. DC-12.4GHz, SMA (f/m). NEW!  IN STOCK            QII

   55

Weinschel

33-20-12

3dB, 50Wt Attenuator. DC to 8.5GHz, 3.5mm connectors. IN STOCK

 195

Weinschel

33-3-12

20dB, 50Wt Attenuator. DC to 8.5GHz, 3.5mm connectors. IN STOCK

195

Weinschel

5872

DC-20GHz, 0-90dB step attenuator, 24V.  IN STOCK

695

Weinschel

152A-70-1

DC-26.5GHz, 70dB step attenuator, 24V. IN STOCK

695

Weinschel

167-110

DC-18GHz, 110dB step attenuator, 24V. IN STOCK

695





DATA ACQUISITION and CONTROL



Agilent

E1418-60101

Terminal block for E1418A plug-in and E6184A.

195

Agilent

10833C

GPIB/IEEE-488 Cable, 4 meter length (13ft). 1+ quantity discount.

40

Agilent

34970A

Data Acquisitions and Control System. IN STOCK 6z50

450

Agilent

34901A

Multiplexer Module for 34970A DAQ system. 6z50

195

Agilent

34908A

Multiplexer Module. 40 channel. 6z50

195

Agilent

N2262A

Multiplexer card for Agilent data acquisition systems. Connector block included

295

HP

E1326A

DMM card for the HP E1301A/B systems. IN STOCK

175

HP

E1330B

Multiplexer card for VXI systems with terminal blocks.

170

HP

E1352A

Multiplexer card for VXI systems; E1301B, E1302A

295

HP

E1364A

16 Channel Form C switch. For VXI systems

150

HP

E1413C

A/D Converter Module. 64 Channel, 16 bit resolution. For VXI systems

1950

HP

E1418A

D/A Converter Module. 16 Channel, 16 bit resolution. For VXI systems

850

HP

E1432A

Digitizer board for VXI systems. Opt 1D4, W01. ii

495

HP

E1458A

96 Digital I/O Module. For VXI systems

750

HP

E8491A

IEEE-1394 PC link to VXI is a C-size, 1-slot, message-based VXI module, providing a direct connection from your PC to a VXI mainframe via the industry standard IEEE-1394 bus (FireWire)

195

Agilent

3497A

Switch/Control Unit. GPIB, IN STOCK. Cards are available separately

350

Agilent

3499B

Switch/Control Unit. GPIB, RS-232, 2 Card slots

295

HP

44421A

Data acquisition input multiplexer board (20 channel) with terminal block. vii

120

HP

44422A

T/C interface card with terminal block for HP3497A data acquisition system

75

HP

44426A

Counter module for the HP3497A data acquisition system

175

HP

44428A

Actuator interface card with terminal block for HP3497 data acquisition system

95

HP

44431A

High voltage actuator interface card with terminal block for HP3497 data acquisition system

95

HP

44470A

Multiplexer card with connector block  for HP 3488A switch unit. iii

95

HP

44471A

Multiplexer card with connector block  for HP 3488A switch unit. vi

95

HP

44472A

Coaxial multiplexer card for the HP3488A switch unit.   iii

120

HP

44473A

Relay multiplexer card for the HP3488A switch unit. New in a box. vi

150

HP

44474A

Digital I/O card for the HP3488A switch unit. viii

150

HP

44478B

RF multiplexer switch card for the HP3488A switch unit. ii

95

HP

44703B

Memory card for the HP3852A DAQ unit. 1MB total memory

275

HP

44705F

Relay multiplexer card for the HP3852A and 3853A. Newer serial number

275

HP

44710A

T/C interface card. 20 channel for the HP3852A and 3853A. Newer serial number

650

HP

44711A

High speed FET multiplexer for the HP3852A/3853A. Connector block not included.

175

HP

44714A

High speed FET multiplexer for the HP3852A/3853A. Connector block not included.

175

HP

44724A

16 channel digital output card for the HP3852A and 3853A. IN STOCK. Newer serial number

195

HP

44729A

20 Channel multiplexer card for the HP3852A, 3853A. IN STOCK. Newer serial number

295

HP

59301A

ASCII to Parallel converter. Permits control of many older HP instruments via GPIB interface

125

HP

59306A

Relay actuator Six form-C relays. Push button or GPIB control. ii

275

HP

59307A

VHF Switch. Dual Single pole 4 throw. GPIB or pushbutton.  DC-500MHz, 50 Ohm

250

HP

59501B

Power supply programmer. Control power supplies with analog programming capabilities with a PC via GPIB interface. Isolated.  Range +/-1V or +/-10V. 1mV/10mV resolution. LabView supported.

125

Keithley

706

Scanner/Switch unit. 10 slot for Keithley 7000 series control cards. IN STOCK

295

Keithley

7011-C

Multiplexer card for the Keithley 7001, 7002 switch control unit. IN STOCK

550

Keithley

7013-S

Relay card for the Keithley 7001, 7002 switch control unit.

350

Keithley

7052

Relay matrix card 4x5 form factor. For Keithley 700, 7000 series mainframes

95

Keithley

7054

High voltage Relay matrix. For Keithley 705, 706  mainframes

150

Keithley

7055

Relay matrix card  for Keithley 705, 706  mainframes

95

Keithley

7062

RF Relay switching card. For Keithley 705, 706  mainframes

150

Keithley

7071-4

Switching matrix card for Keithley 707. Dual 4x12 matrix with 5MHz BW.

350

Keithley

7158

Low current scanner card for Keithley 7001, 7002, 705, 706 scanners

950

Keithley

7708

Differential multiplexer card. For Keithley 2700 meter. 006

595

North Atlantic

8810

Angle Position Indicator. opt F1-2, F2-2 (GPIB interface and 47-440Hz)

2450

NI

BNC-2080

BNC interface board. p/n 181630

175

NI

182009-04

GPIB interface cable, standard to Single-End Male. p/n 182009-04 X5 Double-Shielded, 4 meter

85

NI

PXI-8156B

CPU module with Hard drive

750

NI

SB-GPIB-TNT

National Instruments GPIB board for SB bus

395

NI

SCXI-1300

Terminal block with an onboard temperature sensor for cold-junction compensation.

150

NI

SCXI-1102B

32 channel amplifier board. 200Hz BW. 333 kS/s maximum sampling rate

950

NI

SCXI-1163R

32 channel opto-isolated solid state relay module

395

NI

SB-GPIB-TNT

National Instruments GPIB board for SB bus

150

NI

VXI-MXI-2

National Instruments VXI CPU card. IN STOCK

350

NI

183105A-01

National Instruments VXI CPU card. IN STOCK

350

NI

182429H-20

National Instruments VXI CPU card. IN STOCK. VXIPC-486 model 566

495

Spectracom

8160a

Standard Frequency receiver with 10 MHz output.

450

SRS

SR245

Computer Interface for NIM chassis. IN STOCK!

650

SRS

SR250

Integrator Box Car Averager for the NIM chassis. IN STOCK! II

1950

SRS

SR280

Power supply and Display module for SRS NIM chassis. IN STOCK

950





TEMPERATURE, PRESSURE, HUMIDITY, LIGHT, SOUND



Azonix

A1011

Precision RTD thermometer. Three input channels. With one RTD probe. Complete model number:  A1011-XX-XX-RT41. Pic

750

Fluke

52

Thermocouple thermometer. 2 channel, Record, Hold, Difference display. T/C included

65

Fluke

2190

Thermometer for use with all types of thermocoples. 10 separate temperature inputs with Y2001 T/C selector. Scanner and printer are available separately

195

Fluke

2030

Thermal Printer for Fluke temperature measuring system.

295

Fluke

Y2003

Thermocouple calibrator. AC or Battery operation

350

Honeywell

612X9

Circular Humidity & Temperature recorder. 1 Week chart, no AC or Batteries required  Picture

190

Kaye

X1360

Temperature validation system. Used as a high precision temperature calibration standard

1250

Omega

DP462T

Multichannel thermometer. Six T/C inputs. Current list price $348.  Info

      95

Omega

HH611PL4C

T/C Thermometer with paper printout, 4 channel, data logging, Type "K" T/C. AA batt power.  INFO

    195

Omega

CT485B

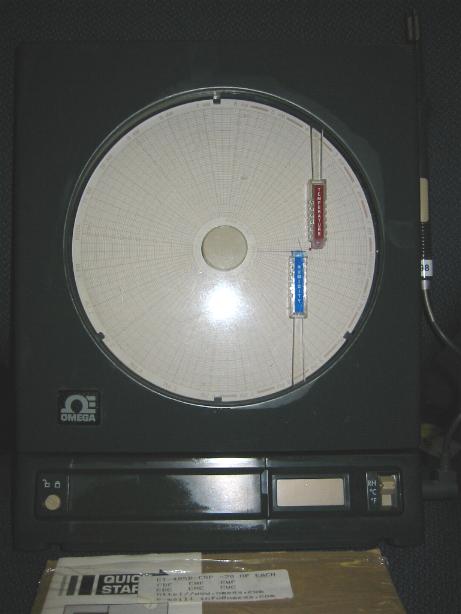

Circular Humidity & Temperature recorder. With Humidity probe and spare charts pack.  Pic

395

Tektronix

P6602

Temperature probe Platinum RTD sensor. Works on TEK DMM's and Oscilloscopes. 230deg C max. Works in liquids.

50





HIPOT, SAFETY, GROUND, DIELECTRIC WITHSTANDING TESTERS



Associated Research

5060AT

DC hipot and Ground tester. 0-6kV DC, 5mA max.  Acceptable for UL compliance testing.

525

Compliance Design

ESD2000

25kV Charge pump for ESD compliance testing  Pic PROBES NOT INCLUDED

390

Compliance Design

ESD2000i

Air and Contact discharge probe set for the ESD2000i tester.

950

ED&D

HP2000

AC-DC Hipot tester, 0-3000VAC, 100-4250VDC.  Meets UL, CSA, CE, EN, IEC, MIL safety requirements Full specs Pic

1295

Hipotronics

HDB-6

DC Hipot tester, 5000V max. Failure alarm when arcing is detected. Pic

390

Hipotronics

HD115

AC/DC Hipot tester. 12kVAC/15kVDC, 3 DC current ranges. IN STOCK

3500

IMCS

2500

Electrostatic Discharge (ESD) IC tester. Up to 10kV tests per Mil-Std-883, Method 3015 for Human Body Model current waveforms. 10nS maximum rise time   Pic

1950

Keytek

ECAT 103

Keytek ECAT system. Test Surge, EFT/B, ESD and PQF. IN STOCK. (call for the module availability). Pic Pic

call

Keytek

E501

Module for Keytek ECAT system. IN STOCK. Pic

call

Keytek

E411

EFT/Noise Burst Simulator for  Keytek ECAT system. IN STOCK

call

Keytek

E4552

AC Line Coupler for EFT and Surge waves for Keytek ECAT system. 277V outlet.

call

Keytek

801-Plus

Surge Test System. M801-5 Surge Network is available.  Pic

call

Keytek

M801-5

M801-5 Surge Network for the Keytek 801-Plus test system   Pic

call

ROD-L

M25

Ground continuity tester in full compliance with BSI, VDE, IEC standards.Pic

550

ROD-L

M30

Ground continuity tester in full compliance with BSI, VDE, IEC standards Pic

650

ROD-L

M35

Ground continuity tester in full compliance with BSI, VDE, IEC standards Pic

850

ROD-L

M100AVS5-2.8-40

AC Hipot Tester. 2.8 kV max, up to 40 mA. Test for dielectric voltage-withstand for CS, VDE, UL, IEC Pic

595

ROD-L

M100DC5.5-5

DC Hipot Tester. 5.5 kV, 5mA test current. Test for dielectric voltage-withstand for CSA, VDE, UL, IEC

850

ROD-L

M100DC5.5-10

DC Hipot Tester. 5.5 kV, 10mA. Test for dielectric voltage-withstand for CSA, VDE, UL, IEC

950

ROD-L

M988

GPIB controller for the ROD-L hypot and ground fault testers.

650

Vitrek

V74

Hipot and Ground safety tester. IN STOCK

2100





MICROWAVE COMPONENTS ( also see  ATTENUATORS )



Ailtech

7617

Noise Source 12.5-18GHz. Compatible with HP8970A, HP8970B noise figure meters

   295

Anritsu

806-206

VNA test cable. 1.85mm M-F, 24 inches. Phase stable. Sold as a set only. Unused

   call

Anritsu

23N50

N type Calibration Short. Part of the Anritsu 3653 calibration kit. ii

195

Anritsu

34NFN50

N type precision connector Male to Male. New equipment!

50

Anritsu

73N75

RF Detector. 100kHz-2GHz, Negative polarity. N type male connector. New condition

     175

Anritsu

K210

K type precision connector. DC-40GHz, Female to Female. New equipment.

  95

Anritsu

3640B-W

Microwave Module. For Anritsu/Wiltron network analyzers. W-band 75-110GHz.

Call

Anritsu

3740A-Q

Transmission/Reflection Test set. For Anritsu/Wiltron network analyzers. Q- band 33-50GHz. Pic

   2450

Anritsu

3741A-Q

Transmission Test set. For Anritsu/Wiltron network analyzers. Q- band 33-50GHz. Pic

  1950

Anritsu

MA2425A

RF Power Sensor 10MHz-50GHz. New demo units. Includes 3.5mm adapter

call

Anritsu

MA4610A

RF Power Sensor. -50dBm to +10dBm, 50Ohm, 500MHz.

325

Anritsu

560-7S50-2

RF Detector 10MHz-26.5GHz. New demo units. ii

495

Anritsu

560-7S50B

RF Detector 10MHz-20GHz. New demo units. iii

395

Anritsu

5400-6NF75

Autotester 1MHz-3GHz, 75Ohm, New demo units. pic ii

650

Anritsu

62N75

VSWR Bridge 10MHz-1GHz, 75Ohm. New demo units. ii

475

Agilent

5364A

Microwave Mixer/Detector. 2-18GHz built in 70dB attenuator. pic

950

Agilent

8762B

Coaxial switch DC-18GHz. SPST.

  95

Agilent

85902A

Burst Carrier Trigger. New in a Box! Perform accurate RF power measurements with spectrum analyzer

     195

ETS Lindgren

HI-4433-STE

Isotropic Field Probe 500kHz-5GHz. With a charger and carying case

850

ETS Lindgren

HI-3012

Broadband Filed Strength meter for ANSI MPE testing supplied with E-Field probe model MSE and HCH H-Field probe

750

Gigatronics

16936

Peak power sensor for Wavetek 8501/8502 Power meters. ii

1495

HP

J486A

Thermistor mount power sensor. For the HP432 RF power meter

150

HP

3717A

70MHz Modulator/Demodulator. Available options:16, 17, 18, H31, H32 or 004, 031, 032, 033, 034, 035, 100

     650

HP

8411A

Harmonic converter for HP8410A Network analyzer.

385

HP

8482A

RF Power sensor 100kHz-4.2GHz, 100mW. Late serial number

650

HP

8484A

RF Power sensor 10MHz-18GHz, 0.1nWt to 10uWt.

195

HP

8762A

Microwave switch. 4 GHz BW, SPDT, SMA. 24VDC. Same as HP 33311A

75

HP

11665A

Microwave Modulator. On/Off type. Designed to be driven directly by the HP8755 plug-in

     125

HP

11691D

Directional coupler 2-18GHz, 22dB coupling, dual.  Option 001

350

HP

85044A

Transmission Reflection Test Set. 300kHz-3GHz, 70 dB attenuator.

1250

HP

85650A

Quasi Peak Adapter adds EMI receiver capabilities to the HP8566, 8567, 8568 spectrum analyzers.

    550

Integra

DWM1800

Dual wavemeter with Tunable filter. 1-18GHz range

750

Krytar

301A

Microwave detector 0.1MHz to 20 GHz. 3.5mm connector. Negative polarity output

150

Krytar

1822

Directional coupler. 2-18.5GHz, -10dB. IN STOCK!

195

Krytar

2618

Directional coupler. 1.7-20GHz, 16dB. IN STOCK!

195

Narda

3122

Directional Coupler 1-18GHz, N conn. in & out, SMA detector connector

195

Narda

23509

Directional coupler 7-18GHz, -10dB, APC-7 connectors

150

Pacific Measurements

15176

Microwave Detector Probe. 10MHz-18GHz. For use with scalar network analyzers

190

Wavetek

15176

Microwave Detector Probe. 10MHz-18GHz. For use with scalar network analyzers

190

Wavetek

16936

Peak power sensor for Wavetek 8501/8502 Power meters. ii

1495

Wiltron

ND15524

Detector 10MHz-18.6GHz, +20dBm max input, SMA input

95

Wiltron

D-25400

Directional bridge 75Ohm, Directivity 25dB <500kHz, 30dB up to 3GHz.

     395

Wiltron

3640B-W

Transmission/Reflection Module W-band 75-110GHz.  Picture

Call





OPTICAL & LASER TEST EQUIPMENT & ACCESORIES



Accufiber

100C

Optical fiber temperature controller. SENSORS ARE NOT INCLUDED

450

Agilent

N7786A

Polarization synthesizer. Same as  Adaptiff A3300

call

Agilent

8156A

Optical attenuator. Opt 100, 101, 123, 201 are in stock

850

Agilent

8163A

Lightwave Multimeter. Latest firmware revision. With PC software.

1300

Agilent

8509C

Polarization Controller for measurement of optical signals.

2950

Agilent

8163B

Lightwave Multimeter. IN STOCK. 6z50

2995

Agilent

8164A

Lightwave Measurement System. IN STOCK. 6z50 ii

2995

Agilent

8166B

Lightwave  Multichannel System. IN STOCK. 6z50

3950

Agilent

11980A

Fiber-optic interferometer with opt 005 (extended delay range of 5.2km) and FC/PC conn. Picture

  950

Agilent

81570A

Optical Attenuator module. IN STOCK. 6z50

  950

Agilent

81576A

Optical Attenuator module. IN STOCK. 6z50

2995

Agilent

81591A

Optical Switch module. IN STOCK. 6z50

595

Agilent

81591B

Optical Switch module. IN STOCK. 6z50

595

Agilent

81591S

Optical Switch module. IN STOCK. 6z50

595

Agilent

81594S

Optical Switch module. IN STOCK. 6z50

995

Agilent

81610A

Return loss module.  For Agilent 8163/8164/8169 systems. 6z50

995

Agilent

81613A

Return loss module. For Agilent 8163/8164/8169 systems

995

Agilent

81618A

Interface module. For Agilent 8163/8164/8169 systems. 6z50

1200

Agilent

81619A

Interface module. For Agilent 8163/8164/8169 systems

1650

Agilent

81635A

Power Measurement module for Agilent 8163/8164/8169 systems 6z50

2500

Agilent

81636B

Power Sensor Module for Agilent 8163/8164/8169 systems 6z50

1200

Agilent

81640A

Tunable Laser. IN STOCK!

9995

Agilent

81640B

Tunable Laser. IN STOCK! option 072

  call

Agilent

81560A

Optical attenuator. For Agilent 8163A/B, 8164A/B, 8166B. IN STOCK

   call

Agilent

81663A

Laser source module for Agilent 8163A, 8163B, 8164A, 8164B  6z50

 1200

Agilent

81650A

Laser source. High stability, 1300nm, 1mW. Fabry-Perot type. List price $8500.

 1500

Agilent

81689A

Tunable Laser Source. NEW IN A BOX! Save thousands $$$. Max rated output power is guaranteed. Opt 021.

3950

Agilent

86109A

Optical / Electrical Module for 86100 series scopes. IN STOCK 006

Call

Ando

AQ2735

Optical power module with 9389B adapter 6z50

595

Ando

AQ6317B

Optical Spectrum Analyzer. IN STOCK. 6z70

8500

Ando

AQ6370

Optical Spectrum Analyzer. IN STOCK. 6z50

call

Ando

AQ8201-02

Display Module for Ando optical measuring system.  PICTURE

850

BCP

410A

DFB Laser Transmitter 1mW, 2GB/s, 1.5GHz analog or digital modulation. Spectral width 0.7nm, Wavelength 1300nm

  950

EIT UVICURE

EIT UVICURE

Radiometer for measuring UV energy. Range: 10mW/CM2-10W/CM2, 320-390nm. INFO   PICTURE

     595

Agilent

86120C

Multi-wavelength meter. IN STOCK! 6z50

call

HP

86120B

Multi-Wavelength Meter. IN STOCK!  6z50

4950

HP

8504B

Precision Reflectometer. IN STOCK! 6z70

call

HP

11896A

Polarization controller. IN STOCK! 6z70

2500

HP

8152A

Optical power meter. Dual channel. GPIB interface. Sensor head not included. ii

295

HP

81533B

Optical head interface module. For HP8153A or HP8163A

995

HP

10780F

Remote optical receiver. Sensitivity: 2.2 uW with 2 m fiber (5 uW with 10m fiber)

150

HP

83438A

Erbium Laser source. 1550nm, +6dbm. IN STOCK. 6z50

995

HP

86142B

Optical Spectrum Analyzer. IN STOCK! Opt. 1, 2, 6 are available 6z50

call

ILX Lightwave

LDC-3724B

Laser diode controller. IN STOCK. 6z50

975

ILX Lightwave

LDC-3744B

Laser diode controller. Controls diode source and temperature <32Wt

1750

ILX Lightwave

LDT-5948

Precision Laser Diode Temperature controller. ii

750

JDSU

BBS1550 +2AA20

Broadband Light Source >12.7dbm @ 1550nm. IN STOCK. 006

150

JDSU

BBS-30-F1-131

Broadband Light Source >11.5dbm @ 1550nm. IN STOCK. 006

1450

Keopsys

OI-BT-C-18-Sd-B-GP-FA

C band fiber amplifier, 18dBm power, Freq. range: 1535-1565nm

2950

Luxtron

100C

Optical fiber temperature controller. SENSORS ARE NOT INCLUDED

350

Optocom Innov.

OI-BT-C-18-Sd-B-GP-FA

C band fiber amplifier, 18dBm power, Freq. range: 1535-1565nm

950

Newport

LDC-3744B

Laser diode controller. Controls diode source and temperature. ILX logo

1750

Photonetics

Fiberamp-BT 20

20dBm C-band amplifier. 35dB small signal gain, 4.5dB noise figure, 1520-1560nm

950

Spectra Diode Lab

SDL-800M

Laser diode power supply and laser driver. 0-1999mA, 50kHz BW, 100ppm stability. More info

450

VWR

20904-010

Touchless Digital Tachometer with memory. Carrying case included.

95

Yokogawa

75301

Optical Spectrum Analyzer. IN STOCK!. 6z50

call





GRAPHIC PLOTTERS, CHART RECORDERS, PRINTERS



Astro-Med

MT9500L

Oscillographic Recorder, 8 Chan, Freq.: DC-5kHz , Sampling rate: 30kHz, 12bit accuracy,  IEEE-488 & RS-232, Use as an A/D converter with digital output to host PC. Gain control for each chan. pic

     975

Dranetz

626GP

Graphics printer for the Dranetz 626 power line analyzer. With interface cable.  pic

195

Gould

TA240

Oscillographic Recorder. IN STOCK. Model 13-6615-10S Plug-ins are available. pic

Call

HP

2225A

Ink-jet printer with GPIB (IEEE-488 ) interface. Works with any GPIB equipped instrument that supports GPIB printing.

     185

HP

2225C

Ink-jet printer with Centronics (parallel) interface.

     185

HP

2225D

Ink-jet printer with RS-232 interface.

     185

HP

7015A

X-Y plotter, Opt 2, 4. 1mV/100mV/1V sensitivity on X-Y scales. X axis 6 spd. sweep

       750

HP

7035B

X-Y plotter. 1mV sensitivity, A4 paper size. IN STOCK

     750

HP

7133A

Strip chart recorder. 8 chart speeds 1 in/hr to 6in/min. Input: 1mV to 100V in 12 ranges

     290

HP

7440A

Color Plotter. A or A4 paper size. NEW PENS!  GPIB or RS-232C interface.

       295

HP

7475A

Graphic plotter. 6 pens Accommodates 8.5 x 11 inch and 11 x 17 inch sheet size. Addressable step .001 inches, repeatability .004 inches. RS-232C or GPIB interface

     295

HP

92203J

HPIB to Centronics interface converter. Let's you use any parallel interface printer instead of GPIB printers.

       95

Tektronix

HC100

Color Plotter with new pens! GPIB or Centronics interface.

295

Yokogawa

DR130

Hybrid recorder. High speed, 10 Chan. 10 color chart, FDD, GPIB, Direct T/C inputs

950

Yokogawa

HR2300

Hybrid recorder. 30 channels, High speed, 10 color chart, GPIB, Direct T/C inputs

950

Yokogawa

376022

Hybrid recorder. 30 channels, High speed, 10 color chart, GPIB, Direct T/C inputs

950





ALL OTHER MISCELLANEOUS EQUIPMENT



Agilent

2090-0210

Color display module. New in a box! 1 year warranty.  Pic Fits many HP/Agilent instruments.

395

Agilent

10075A

0.5mm Microprobes for SMD devices. Set of 4 clips with dual lead adapter. NEW! Save 25%

     179

Agilent

10467-68701

0.5mm Microprobes for SMD devices. Set of 4 clips. NEW UNITS. No lead time, 60% off list

     120

Agilent

E8142-60001

Test leads set for the Agilent 16522A, 1670G, 1671G, 1672G, 16720A, E8142A

     55

Agilent

10462A

TTL Clock Pod for Agilent logic analyzers.  With test leads.

80

Agilent

10465A

ECL Data Pod for Agilent logic analyzers. With test leads.

95

Agilent

E5359A

Micro Probe makes it easy to connect an Agilent logic analyzer to the target system. New!

490

Agilent

E5346A

High density adapter for Agilent & HP logic analyzers

195

Agilent

E5383A

16-channel  probe lead set for all Agilent 1650/16500/54XXX/16700/1680  analyzers   pic

150

Agilent

E8401A

High power VXI chassis

395

Agilent

16715-61601

Probe Cable for Agilent 16715A, 16716A, 16801A, 16802A, 16803A, 16804A, 16806A, 16822A, 16823A. Pic

     150

Agilent

04155-61602

Interface cable for Agilent 16442A test fixture

250

Agilent

E3003-61002

SMA plug-in for the Agilent 94000 IC tester

call

Agilent

E3003-61055

Analog ground measurements module for the Agilent 94000 IC tester

call

Agilent

E3003-61058

Time measurement plug-in for the Agilent 94000 IC tester

call

Agilent

E3003-61070

Waveform generator plug-in for the Agilent 94000 IC tester

call

Datel

DVC-8500

DC Voltage Calibrator. 1mV to 19,999V. Reversible polarity.

495

HP

0950-1752

Floppy Disk Drive for the HP 4145B, HP 4195A analyzers. OEM p/n Sony MP-F52W-30

      250

HP

11730A

Sensor Cable 1.5m long. For HP 8400 series power sensors ii

49.95

HP

11730B

Sensor Cable 9ft long. For  HP 8400 series power sensors iii

65.00

HP

11730E

Sensor Cable 30ft long. ARMORED. For HP 8400 series pwr. sensors

99.00

HP

16058A

Test fixture for HP4145B, Agilent & HP 4155A,B,C and 4156A,B,C

650

HP

16346B

Calibration Fixture. IN STOCK

call

Agilent

16495H

Connector Plate. Option 002. NEW

375

HP

04191-85302

Part of HP 4191A calibration kit.

395

HP

04191-85300

Part of HP 4191A calibration kit.

395

HP

4191A

Calibration kit. Consist of 04191-85300, 04191-85302, Cable and other accessories

790

HP

5061-6175

Rack mount kit for HP 54000 series oscilloscopes

195

HP

5062-4840

Rack mount kit for HP 8590 and HP 8560 series spectrum analyzers.

   295

HP

5063-9240

HP Rack Adapter Kit. NEW!

     55

HP

8120-2291

Test cable for the HP 4191A RF impedance analyzer.

   275

HP

8120-4387

Test cable for the HP 43521A, HP 83216A, HP 87511A, HP87511B. NEW!           iv

   250

HP

8120-5639

N type test port cable for HP8752C and other network analyzers

195

Agilent

85620A

Mass memory module for the HP8560 series spectrum analyzers, rev. C firmware.

295

Agilent

85727A

GSM Multiband Transmitter Personality module for HP8560 series.  List price $4350

150

Agilent

16550-61601

Logic analyzer data cable. Used by HP/Agilent 1660/1670 series analyzers. Agilent price $600

   150

Agilent

16710-61603

Logic analyzer data cable. Used by HP/Agilent 1660/1670 series analyzers. Agilent price $600

    175

Agilent

01650-61608

16-channel  probe lead set for all HP 1650/16500/54XXX/16700/1680 series analyzers

   150

Agilent

01650-63203

Isolation adapter. 100kOhm isolation for all HP series analyzers

     65

Data I/O

Unisite 68

Universal Programmer with Site 48 and Pinsite Adapters. 4MB RAM. ver 5.2 software. Pic

  1250

Data I/O

3900L

Universal Programmer. Adapters and Device Bases are available separately. Pic

   950

Data I/O

39Base-0301

SOIC Base for the Data I/O 3900, 3900L, 3980 programmers. Match book adapters available

  250

Data I/O

PM20-PLCC

PLCC Base for the Data I/O programmers. p/n 715-2165-001

   350

Data I/O

PM32-PLCC

PLCC Base for the Data I/O programmers. p/n 715-2167-001

   350

Data I/O

PM44-PLCC

PLCC Base for the Data I/O programmers. p/n 715-2168-001

   395

Data I/O

PM68-PLCC

PLCC Base for the Data I/O programmers. p/n 715-2170-001

   395

Data I/O

PM300-DIP

DIP Base for the Data I/O programmers.  p/n 701-2515-001

   295

Data I/O

PM600-DIP

DIP Base for the Data I/O programmers.  p/n 701-2514-001

   295

Fibercorp Predictor

Fibercorp Predictor

Battery analyzer. Measure Voltage, Internal Resistance, Intercell resistance. Test 1 to 4 cell systems, Stores data on 256 batt. cells, Computer interface. Also calculates, temperature and specific gravity. For Lead Acid batteries. Pic Specification

950

GR

1419A

Decade capacitor 0.001 to 1uF. 3 decades of resolution. 0.001uF step size

295

GR

1481M

Standard Inductor. 5H , +/-0.25% accuracy

195

GR

1406A

Standard Capacitor 1000pF, 0.1% accuracy

475

GR

1406D

Standard Capacitor 100pF, 0.1% accuracy

495

GR

1432J

Decade resistors 1Ohm-11,111 kOhm with 4 decades of resolution, 1 Ohm step increment

195

GR

1433L

Decade resistors 10Ohm-111,110 kOhm with 4 decades of resolution, 10 Ohm step increment

150

GR

1432M

Decade resistors 1Ohm-111,111 kOhm with 5 decades of resolution, 1 Ohm step increment.

195

GR

1481A

Standard Inductor. 1mH, +/-1% accuracy

195

GR

1481G

Standard Inductor. 100mH , +/-0.25% accuracy

195

GR

1481M

Standard Inductor. 5H , +/-0.25% accuracy

195

Hi-Lo System

ALL-LAB2

Universal device programmer and IC tester. Supports 10,000+ devices. Windows software. PLCC & SOIC adapters are available.

350

HP

546A

Logic Pulser. Inject pulses in TTL/CMOS circuits for quick troubleshooting

95

HP

547A

Current tracer. Detect shorted nodes in TTL & CMOS circuits.

120

HP

41424A

Source Monitor plug-in for HP4142B system

195

HP

03585-84401

HP3585B Service Kit. NEW! Can also be used to service other HP models.  Pic

295

HP

04085-61651

Cable harness for the HP 4062A Semiconductor system

250

HP

2090-0210

Color display module. NEW! Factory sealed. 1 year warranty.   Pic

395

HP

5090-4833

Set of 20 SMT mini grabbers. Designed to fit the Agilent E5383A leads but can be used with most scope probes.

30

HP

E2418A

Preprocessor interface for the TI TMS32020. Software, Adapter & Manual. New unit

190

HP

E5359A

Micro Probe makes it easy to connect an Agilent logic analyzer to the target system. New!

490

HP

E5383A

16-channel  probe lead set for  all HP 1650/16500/54XXX/16700/1680 series analyzers

150

HP

16520-61602

Cable for HP 16520A, 16521A, data pattern generators

95

HP

16515-63201

Probe adaptor for the HP 16520A, 16521A data pattern generators

65

HP

16550-61601

Logic analyzer data cable. Used by HP/Agilent 1660/1670 series analyzers. Agilent price $600

300

HP

16710-61603

Logic analyzer data cable. Used by HP/Agilent 1660/1670 series analyzers. Agilent price $600

450

HP

16700-68700

Logic analyzer demo board to demonstrate capabilities of the 16700A oscilloscope

95

HP

54650A

GPIB interface module for the HP546XX series oscilloscopes

195

HP

54651A

RS-232 interface module for the HP546XX series oscilloscopes

195

HP

54659B

RS-232 Centronics interface/storage module for the HP546XX series oscilloscopes

195

Krohn-Hite

511

Voltage calibrator +/-100nV to 11.11110V, Accuracy of 10ppm, 2uV noise

995

Krohn-Hite

3342

Electronic filter & 20dB amplifier. High pass or  low pass mode. 0.01Hz-99kHz, 2 channel, 3 decade resol. Pic

495

Krohn-Hite

3750

Electronic filter & 20dB amplifier. High pass, low pass, bandpass, band reject modes

495

Ohmite

3420

Resistor substitution box. 1 to 11,111,111Ohm with 1Ohm increment. 1% above 9Ohms, 5%  1-9 Ohm, 0.5Wt

95

Pomona

6311

0.5mm Microprobe for SMD devices. Set of 4 clips.  NEW UNITS. No lead time and 60% off list

120

R&S

0396.4940.00

Rohde & Schwartz Handles & Angles kit. NEW! iii

95

Sony

CHM-7501-00

Color display module. NEW, factory sealed with 1 year warranty. Pic

395

Sony

MP-F52W-30

Floppy Drive for the HP 4145B, HP 4195A analyzers. HP p/n 0950-1752

275

Sony

MFD-52W

Floppy Drive for the HP 4145B, HP 4195A analyzers.. HP p/n 0950-1752

275

Sorensen

PIC1T160-30T1M9A

Power supply controller with optional GPIB interface. Control up to 4 power supplies from one front panel or via GPIB interface.

495

System General

SGUP-85A

Device programmer. Program or copy memory devices without a host computer. Pic

195

Teac

FD-235GF

Floppy drive for Tektronix 370A, 371A curve tracers. Tek p/n 119-3456-00.

350

Tektronix

119-3456-00

Floppy drive for Tektronix 370A, 371A curve tracers.

350

Tektronix

K465

Tektronix instrument rack / cart. Ships by freight only.

495

Tektronix

P6417

Probe for Tektronix TLA series logic analyzers

125

Tektronix

P6418

Probe for Tektronix TLA series logic analyzers

  85

Tektronix

P6452

Data Probe for DAS9100 system

120

Tektronix

P6454

Clock probe for DAS system. New sealed package

120

Tektronix

P6460

Logic analyzer probe with accessories. For use with TEK 1430 series logic analyzer

95

Tektronix

P6480

Tektronix Logic analyzer probe

120

Tektronix

P6487

High speed probe for Prizm series logic analyzer probe with flying leads.

195

Tektronix

SMK4

Hand Probe fine-pitch SMD mini grabbers. 25mil JDEC, 0.5mm EIAJ. Micro Klip chip adapter SMK4. NEW!

120

Tektronix

TM501

Mainframe chassis for 1 TEK 500 series plug-ins.

120

Tektronix

TM502A

Mainframe, holds 2 single width Tektronix plug-ins modules. pic

120

Tektronix

TM503

Mainframe, holds 3 single width Tektronix plug-ins modules. pic

100

Tektronix

TM503B

Mainframe, holds 3 single width Tektronix plug-ins modules. pic

150

Tektronix

TM504

Mainframe chassi for 4 TEK 500 series Tektronix plug-ins. pic

95

Tektronix

TM515

Portable 5 slot TM 500 series plug-in chassi with front cover

120

Tektronix

TM506

Mainframe chassis for 6 TEK 500 series plug-ins.  pic

95

Tektronix

TM5003

Mainframe chassis with 3 slots. IEEE-488 interface

295

Tektronix

TM5006

Mainframe chassis with 6 slots. IEEE-488 interface. Rack mount option is available

95

Tektronix

010-0582-00

High density probe interface adapter.

195

Tektronix

196-3470-00

Flying leads probe set for the Tektronix logic analyzer probes. NEW!. Save 50%

132

Tektronix

196-3472-00

Flying leads probe set for the Tektronix logic analyzer probes. NEW!. Save 50%

132

Wavetek

442

Electronic filter. Hi/Lo pass. Dual channel. 100kHz max. 20dB gain. 2 decades of accuracy

350
